We have specialized in the production of covering systems for over 40 years. You will also find recycling containers and street furniture components in our product range. Due to its corrosion resistance, fiberglass reinforced polyester resin is ideally suited to withstand the effects of weathering over the long term. Our clients choose our products because of their durability and reliability.

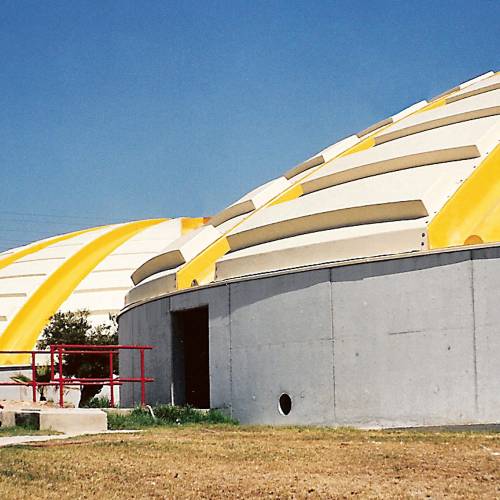

We have over 40 years of experience in the field of large-area covering systems made of glass fiber reinforced polyester resin. We offer numerous modular system variants, as well as special constructions that meet your specific requirements.
Our protection and closure elements are suitable for applications such as tanks, silos, large containers, or conveyor systems. To ensure economical and cost efficiency, we offer numerous modular system variants of our products. Special constructions, such as non-round covers, are easily done.
The functions and dimensions of the covers do not permit a standardized design. Nevertheless, to ensure economic efficiency and cost effectiveness, we offer numerous modular system variants of our products. Special designs, for example non-circular covers, are possible without any problems. Over the years, many such innovative designs have been created, some with very large spans.
As part of project management, we offer support in your selection of the right type, construction, static calculations and approving the building dimensions on site. Our experienced teams also takes care of the final installation on site.
Our fiberglass cover systems effectively
Please see our brochure “Covering Systems” for detailed information.
C.F. Maier Composites Inc. provides cover systems made of FRP and stainless steel hardware (V4A) instead of aluminum. These materials help to prevent corrosion issues and leave the systems resistant to sulfuric acid. The systems have a durability lasting more than 35 years. Some systems provide integrated nuts, requiring only screws from above for an efficient assembly.
Some areas require cover solutions for very high or low temperatures. With an FRP system and the right materials, covers can be resistant to temperatures ranging from -30 to 180 degrees Fahrenheit. For maintenance, it is important to have a walkable surface for inspections – modern covers feature a non-slip surface to make these inspections safe and easy.
Cover systems can be made almost exclusively from fiber-reinforced plastic. These materials and their advantages have been well known for years: high strength, low weight, chemical resistance, good color ability, ultraviolet light resistance and maximum options for shaping. They also hold extreme resistance to weathering and ageing. Some of these covers are more than 35 years in use without any maintenance.
The FRP components are incorporated in the form of mats, fabrics and non-woven, with strict adherence to the structural analysis and with appropriate safety margins. Often, stainless steel is used for connecting elements. Cut edges, drilled holes and the like are carefully sealed for dependable prevention of moisture penetration into the laminate.
Due to the strength of the material, FRP cover systems are all mostly self-supporting with the ability to span great distances (in excess of 225-foot diameter tanks). The process of hand lamination of parts gives a lot of creative space for customized designs.
Outside the U.S. many covers for wastewater tanks in Europe and Middle East use FRP material in order to cover tanks. It does not matter if the tanks are round, rectangular or have another special shape. Utility maintenance holes, doors, stairs, fences and ladders can be integrated into the overall design of the cover.
(From the article “Walkable FRP Cover Systems for Tanks”, published in Wastewater Digest September/October 2023)
9611 Brookdale Drive, Suite 233
Charlotte, NC 28215
(704) 996-0222
2805 Market Loop, Suite 180
Southlake, TX 76092
(972) 436-2536
3101 Seneca Turnpike
Canastota, NY 13032
(315) 697-3800
16120 Woodinville-Redmond Rd NE, Suite 3
Woodinville, WA 98072
(360) 694-9175

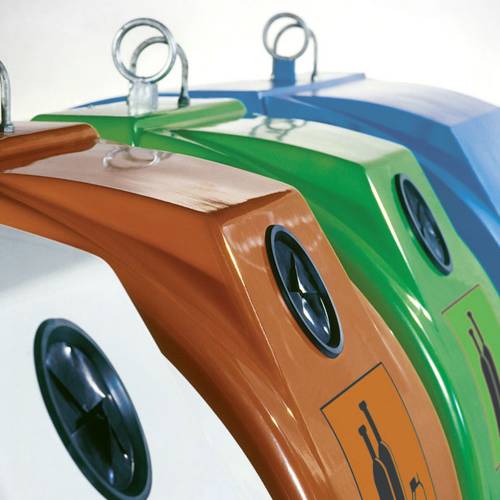

An integral part of the C. F. Maier fiberglass product range are our recycling systems. Our containers have been operating successfully in many cities around the globe for several decades. We offer a variety of recycling bins in different shapes and sizes.
All our containers have been styled by recognized designers and score points not only for their functionality, but also their looks.
New Recycling Bins 4.0
For mor information about our smart bin system including fill level sensor as well as location and space management please download our brochure.
The most durable fiberglass collection container on the market and proven to be the most cost efficient professional collection system.
Bottles and Cans
Capacity | Dimensions (h × w × d) | Special Features |
---|---|---|
400 gal. or |
57″ × 56″ × 46″ |
|
Paper
Capacity | Dimensions (h × w × d) | Special Features |
---|---|---|
400 gal. or |
57″ × 56″ × 46″ |
|
Bottles and Cans
Capacity | Dimensions (h × w × d) | Special Features |
---|---|---|
800 gal. or |
66″ × 82″ × 46″ |
|
Paper
Capacity | Dimensions (h × w × d) | Special Features |
---|---|---|
800 gal. or |
66″ × 82″ × 46″ |
|
Cardboard
Capacity | Dimensions (h × w × d) | Special Features |
---|---|---|
1600 gal. or |
66″ × 82″ × 86″ |
|
Bottles and Cans
Capacity | Dimensions (h × w × d) | Special Features |
---|---|---|
3 ea. 85 gal. or |
57″ × 56″ × 46″ |
|
Paper
Capacity | Dimensions (h × w × d) | Special Features |
---|---|---|
3 ea. 85 gal. or |
57″ × 56″ × 46″ |
|
Bag System
Capacity | Dimensions (h × w × d) | Special Features |
---|---|---|
3 ea. 85 gal. |
57″ × 56″ × 46″ |
|
Cart System
Capacity | Dimensions (h × w × d) | Special Features |
---|---|---|
3 carts (105 gal. maximum capacity each) |
|
|
